Remote Pump
Control System

Smart. Reliable. Connected.

Advanced IoT based remote monitoring and control solution for efficient pump operation, real-time data acquisition and seamless communication.

5G/4G
Connectivity

Real-time
Monitoring

Secure &
Reliable

UPS Backup
Support

WEMAX

REMOTE PUMP CONTROL PANEL

SYSTEM ONLINE

START

STOP

AUTO

MANUAL

Outdoor Durable

Operating Temp. up to 55°C

Dust & Water Resistant

High Reliability Components

Ideal For Wide Range Of Applications

Irrigation &
Agricultural Pumps

Water Supply
Pumping Station

Booster
Pump Station

Sewerage &
Wastewater Pump

Industrial
Pumping System

Key Features

Technical Specifications

Parameter	Details
Panel Type	Wall / Pole Mounted Outdoor Panel
Enclosure Material	1.6mm CRCA Sheet
Surface Finish	Powder Coated (7 Tank Process)
Communication	5G Modem (fallback to 4G) with 1 x Ethernet Port
5G Modem Protocol	MQTT / DNP3 (Built-in)
RTU I/O Count	DI-16, DO-16, AI-4, AO-4
HMI	4 Inch Color HMI with 4 Operation Switch
UPS	5A, 24VDC UPS with 4 Hour Backup
Protection (AC)	220VAC SPD – 1 No., 4A DP AC MCB – 1 No.
Protection (DC)	4A DP DC MCB – 1 No.
Signal Isolation	Signal Isolator for Analog Inputs (AI)
Pulse Counting	Supports fast digital pulse input from flow meters
Operating Temp.	-10°C to +55°C
Ingress Protection	IP65 (Outdoor)
Mounting	Wall / Pole Mounted

Components Included

a 5G Data Modem with fallback to 4G (1 x Ethernet Port, MQTT / DNP3)
1 No.
b 220VAC SPD & 4A DP AC MCB
1 No.
c 5A 24VDC UPS (4 Hour Backup) & 4A DP DC MCB
1 No.
d RTU – DI: 16, DO: 16, AI: 4, AO: 4 (Built-in Display, Fast Pulse Counting)
1 No.
e 4 Inch HMI with 4 Operation Switch
1 No.
f Signal Isolator for AI
1 No.

System Architecture

Field Devices

Pump

Flow Meter

Pressure Trans.

Level Sensor

Valves

Control Panel

WEMAX PANEL

Cloud Server

Cloud

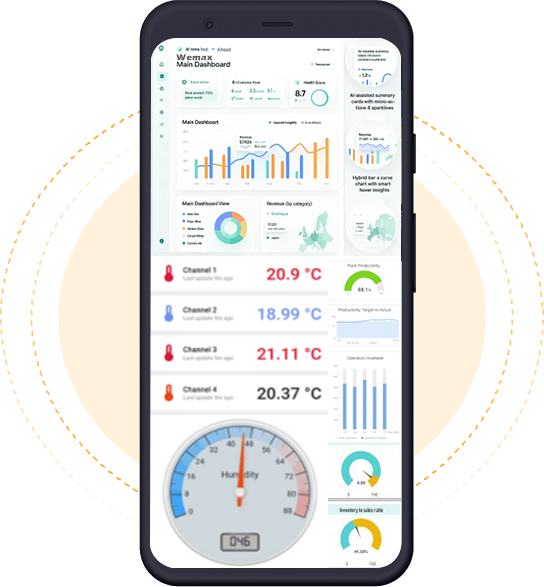

Web / Mobile App

Remote PumpControl System
